Mansfield 500 Series Stem 123-0094

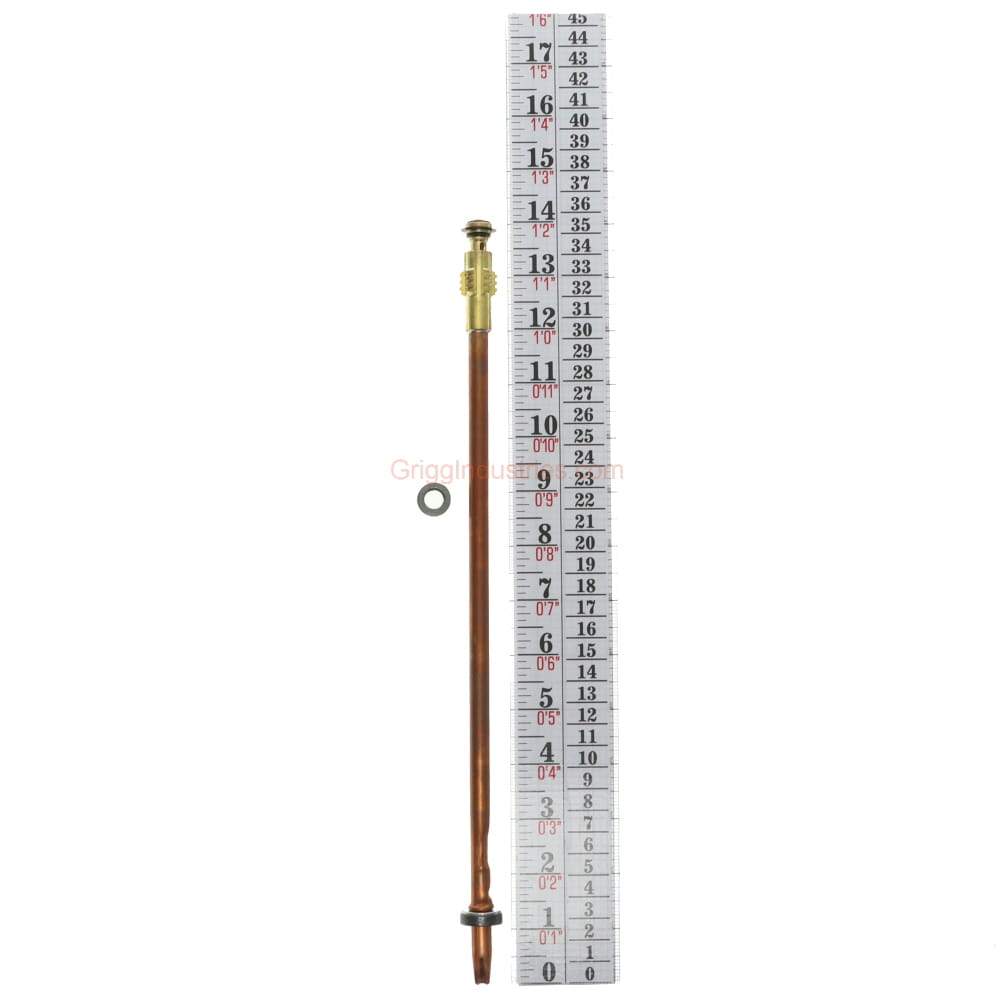

The Mansfield 500 Series Stem 123-0094 is for a 4 inch wall. The stem from end to end will measure 14 inches. If you were to measure this stem while in the faucet you get 6 inches. The Mansfield 123-0094 stem comes complete and ready to install. In Addition, The end that faces out of the faucet has a square shape for the handle screw to thread into it.

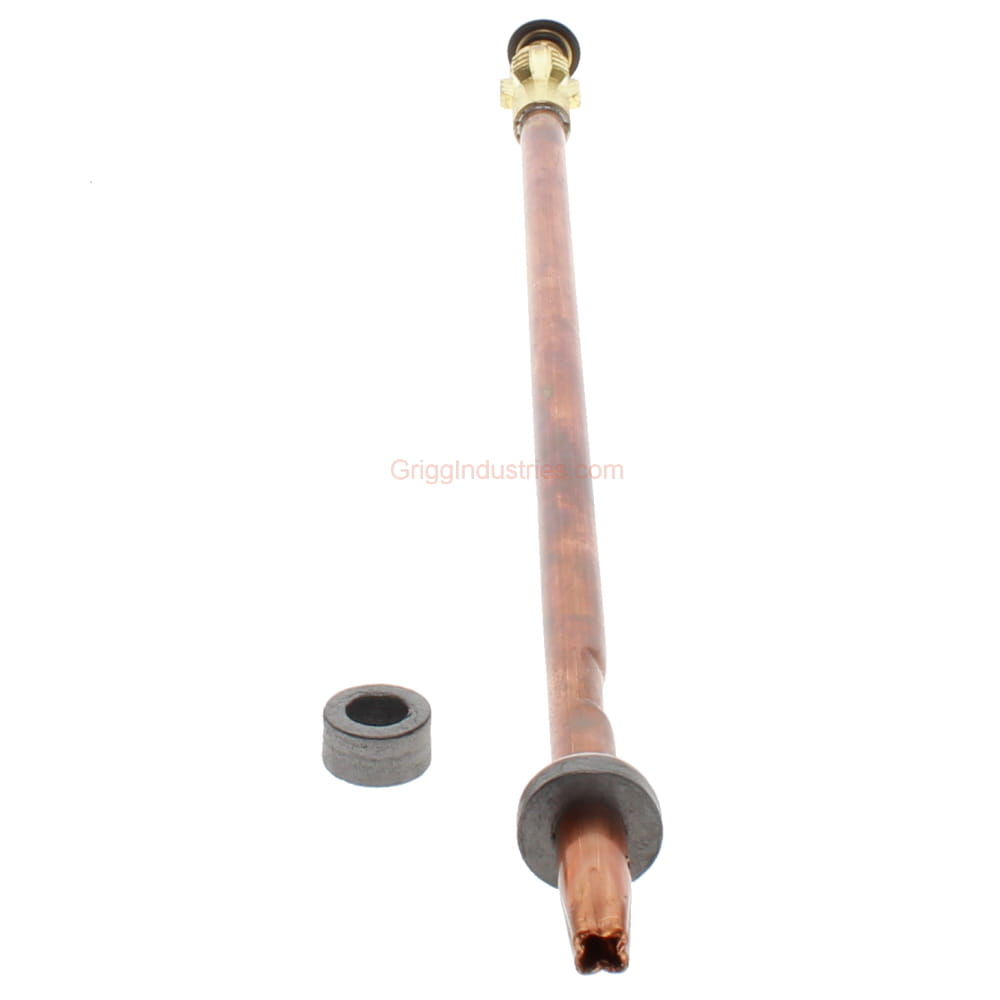

The 123-0094 stem comes with the packing and support washer on one end, And includes a spring loaded end on the other. Along with male threads made of brass. The stem is for the 500 series faucet, which was made before 2006. The Mansfield 500 Series Stem is made from copper and brass. The Stem also has the o-ring and washer on the spring loaded end.

The 123-0094 stem comes complete with all washers and o-rings. Therefore, When ordered you can install as soon as it arrives. When measuring yours make sure to get the complete length. The handle goes into the square end of the stem. However, The stem has brass male threads to go into the faucet. Also, the stem is spring loaded like the 400 series. Mansfield 500 Series Stem 123-0094

• Copper Stem
• 8 Inches long
• Brass threads
• Spring loaded end
• Packing
• Support washer

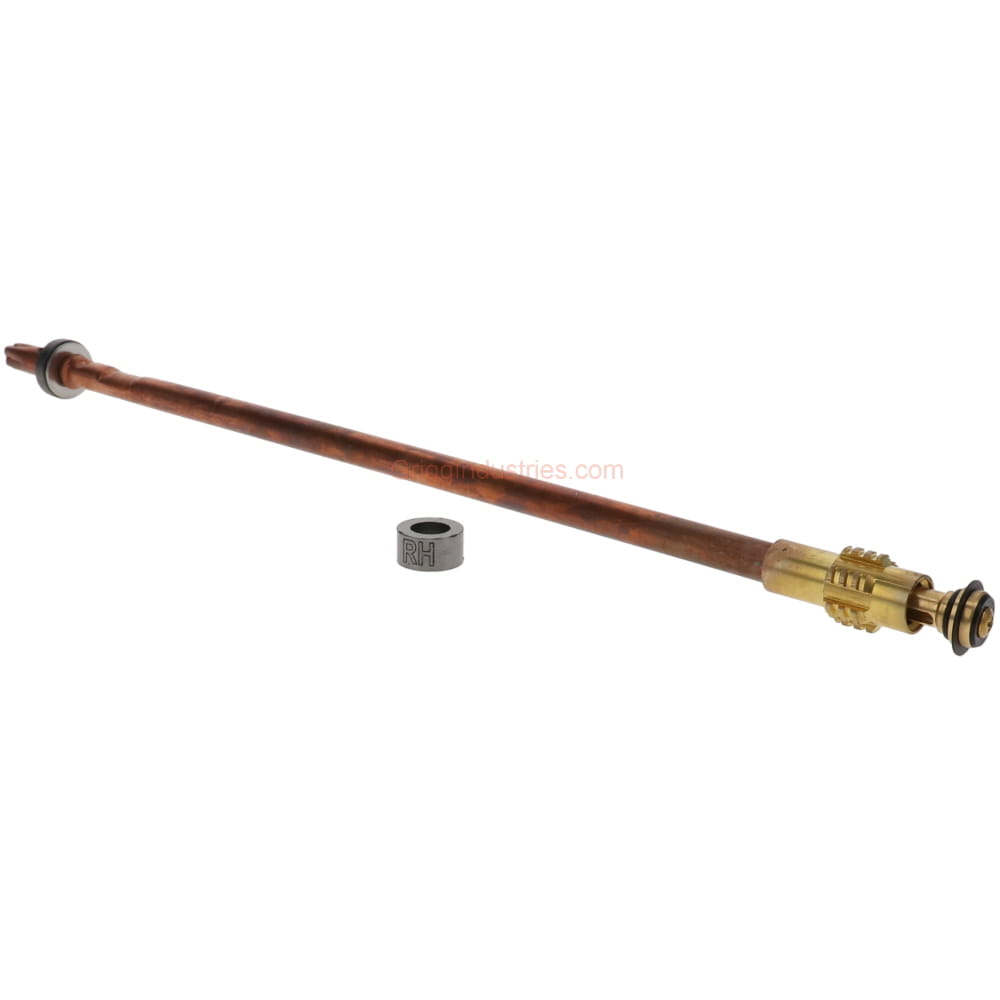

The Mansfield stem 123-0094 comes complete with all shown. The handle on the 500 series faucet will turn a full 360 degrees both on and off. In conclusion, this stem comes with all parts to install and work properly. All of the washers are included. To remove this stem you unscrew it from the body and remove it. The 500 series faucet comes with a vacuum breaker as well.
