Mansfield 123-5036 300 Series Stem

Mansfield 123-5036 300 Series Stem

Regular price $45.70
Regular price $0.00 Sale price $45.70
Sale Sold out
FREE Shipping To The Lower 48 States
We currently have 2 in stock.

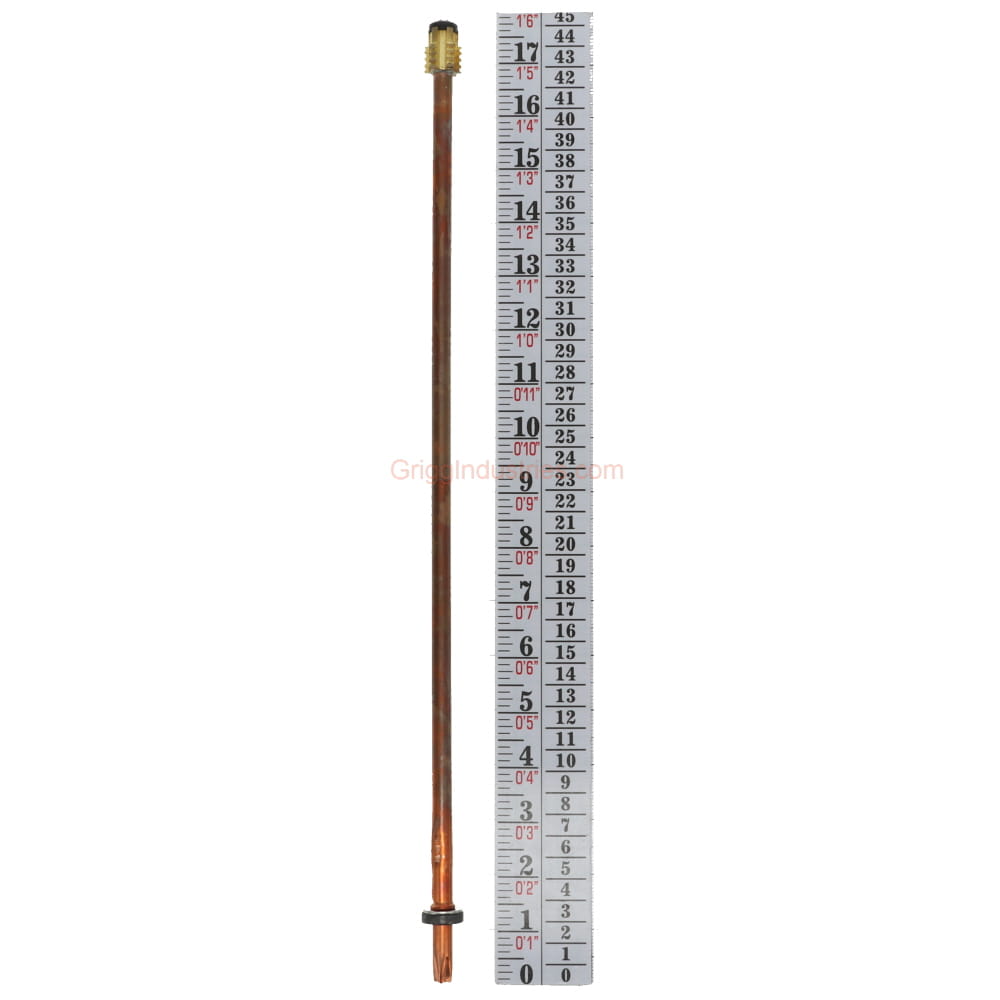

The Mansfield 123-5036 300 Series Stem is 17 7/8 Inches overall length. This stem comes complete including seals, packing, and support washer. All washers come preinstalled so you do not have to. From end to end this Mansfield 300 series stem measures 17 7/8 inches long. This stem comes with both the left and right hand packing.

This stem is for a 4 inch wall, Meaning the stem is 4 inches longer than the frost protection on the faucet. The wall is measured from the back of the face plate to the water shut off. For example if your stem installed measures 13 7/8 inches, that would be the Mansfield 123-5036.

The Mansfield 123-5036 300 Series Stem comes with both left and right hand packing. The left hand packing comes already installed on the stem. The right hand packing is thicker than the left hand. If your faucet is right hand thread, Therefore you would change the packing to the thicker right hand packing.

  • Overall length is 17 7/8 inches
  • Left hand packing
  • Right hand packing is available if needed
  • The support washer
  • copper stem
  • brass male thread

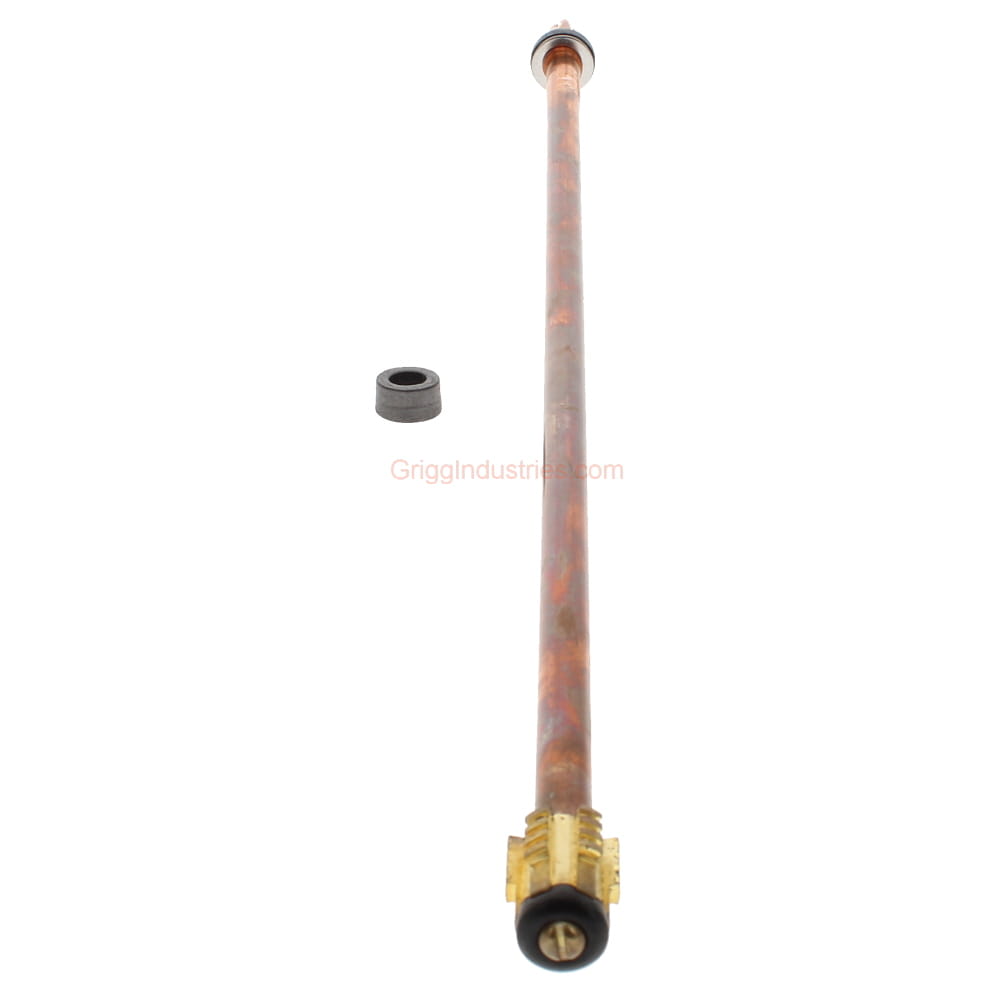

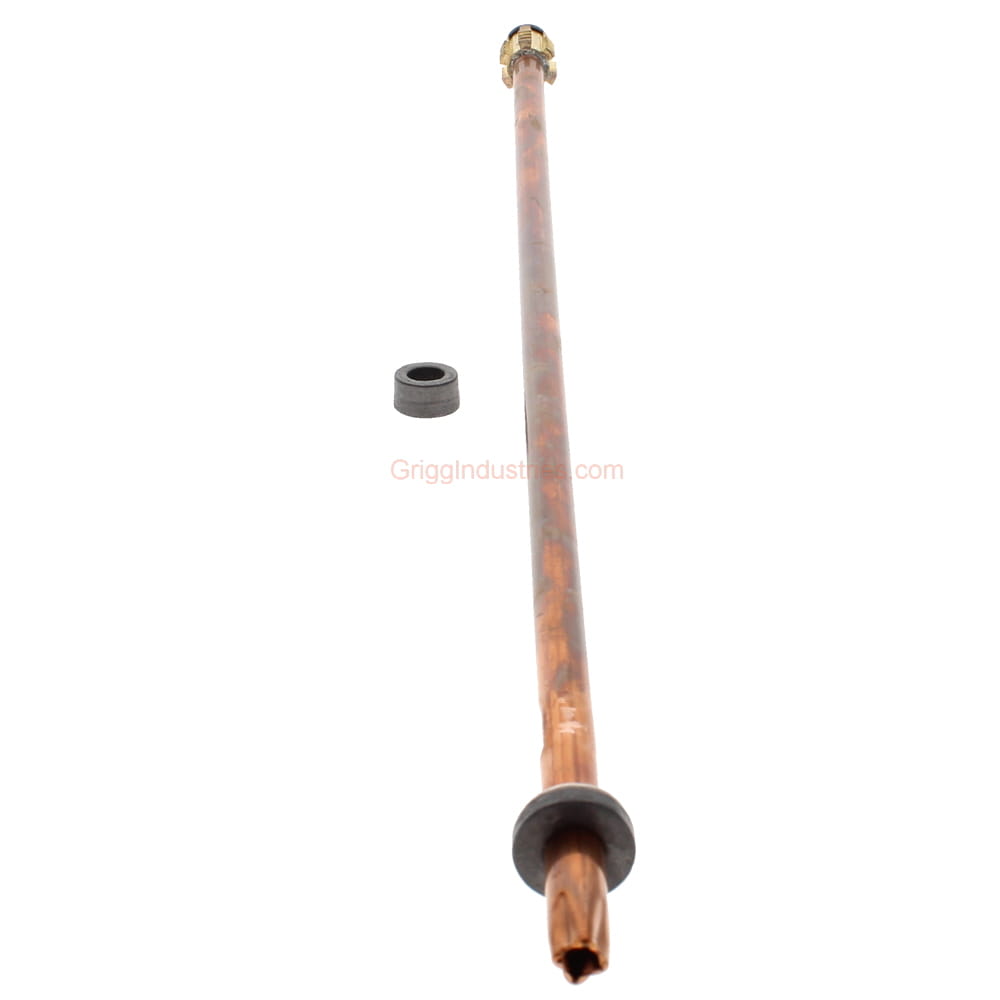

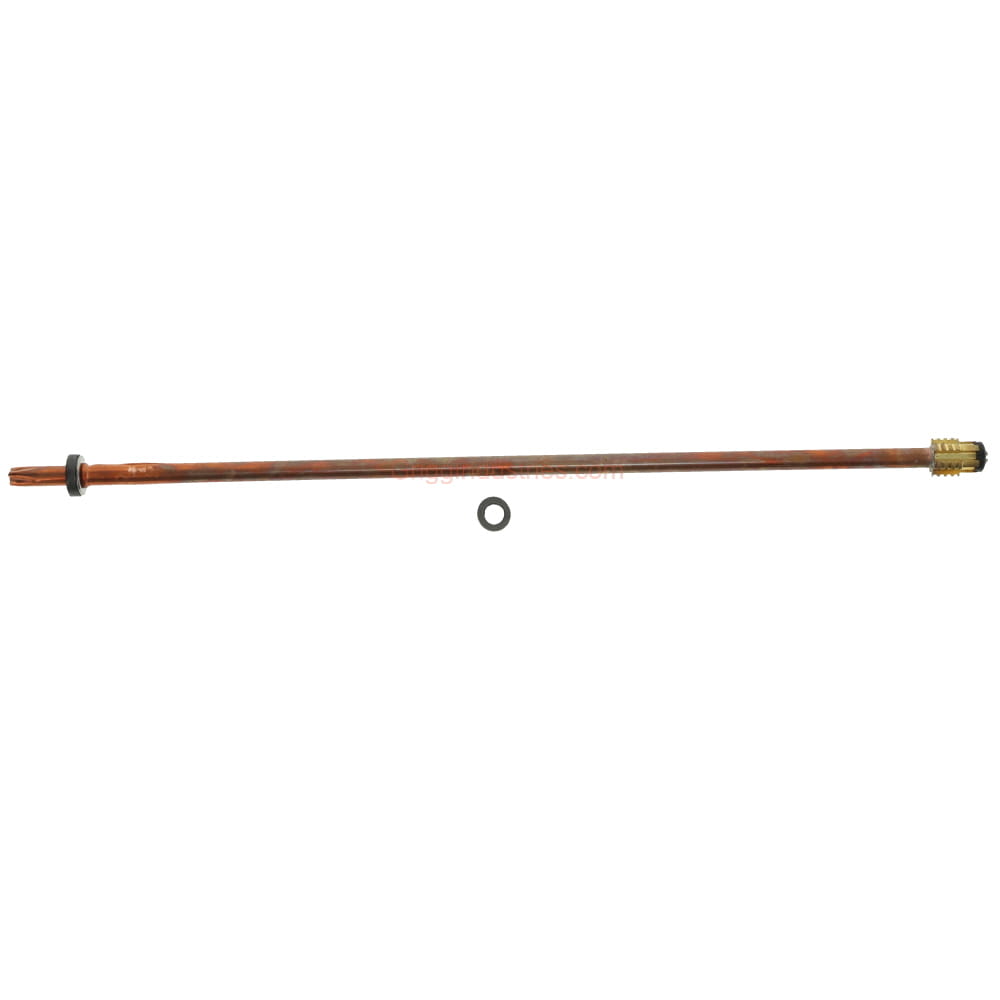

The Mansfield 123-5036 300 Series Stem comes complete as shown. In conclusion you get all parts, washers, and both packings to install this stem.
