Stainless Steel 12" Toilet Supply Line

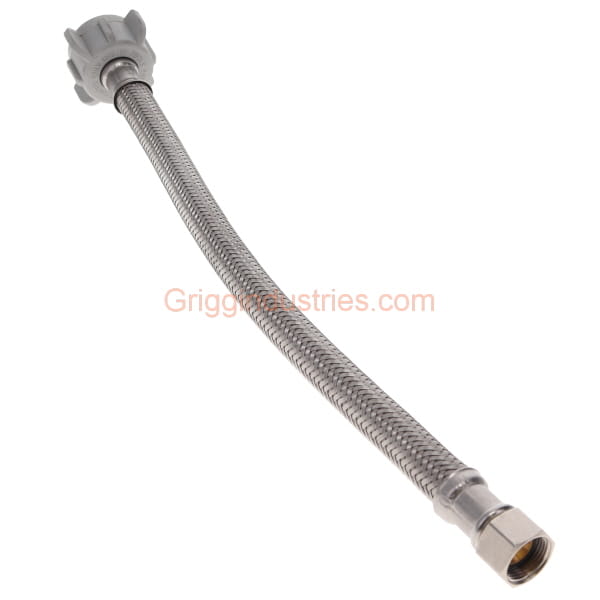

This a genuine Arrowhead Brass stainless steel 12 inch braided toilet supply line. It is a standard sized line, therefore it will work for almost any toilet application. This hose can be found under part number HS37C87B-12. It will come with the nut to secure the line to the bottom side of the fill valve, as well as the fitting that connects to the shutoff valve at the wall. The inner diameter of the nut that secures the line to the fill valve measures approximately 7/8 of an inch, and an outer diameter of roughly 1 1/16 inches. The end of the line that connects to the shutoff valve has an inner diameter of about 5/8 of an inch, and an outer diameter just shy of 3/4 of an inch. The end that connects to the shutoff valve is a hex nut with internal threads, and a small rubber washer located on the inside of it, which is designed to prevent any leaks from the connection. The opposite end that connects to the fill valve is a "wing" style nut, which makes it easy to loosen, and tighten. This end will also have internal threads, and a rubber gasket to prevent leaks from the connection point.
